GAS PERMEAMETERS

What is a Gas Permeameter?

A gas permeameter is a device used to measure the permeability of porous materials to the flow of gases. The basic principle of a gas permeameter involves applying a known pressure difference across a porous sample and measuring the resulting flow rate of gas through the sample. The permeability of the sample is then calculated using principles of fluid dynamics, such as Darcy's law, which relates flow rate, pressure difference, and material properties.

Our instruments are capable of steady-state, fall-off, pulse-decay, or combined permeability measurement methods.

Models

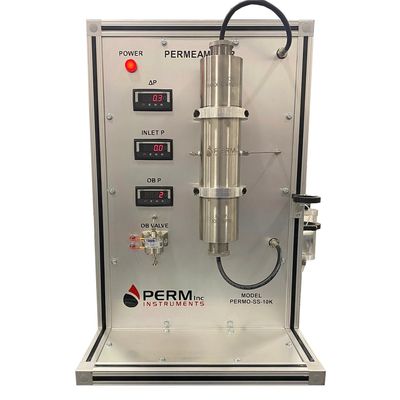

Semi-Automated Steady-State Gas Permeameter

Permeability range: 0.01 mD - 10 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Flow accuracy: 1.5% or better
Flow range: 0-50 and 0-5000 SCCM
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Hand pump for confining pressure
Steady-State Technique
Gas type: Nitrogen

Semi-Automated Fall-Off Gas Permeameter

Permeability range: 0.01 mD -10 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 200 psi
Pressure accuracy: 0.1% FS
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Hand pump for confining pressure
Unsteady-State Technique
Gas type: Nitrogen

Semi-Automated Pulse-Decay Gas Permeameter

Permeability range: 10 nD - 1 mD
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Hand pump for confining pressure
Unsteady-State Technique
Gas type: Nitrogen

Semi-Automated Combined Gas Permeameter

Permeability range: 10 nD - 15 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Flow accuracy: 1.5% or better
Flow range: 0-50 and 0-5000 SCCM
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Hand pump for confining pressure
Steady-state and unsteady-state technique
Gas type: Nitrogen

Fully Automated Steady-State Gas Permeameter

Permeability range: 0.001 mD - 10 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Flow accuracy: 1.0% or better
Flow range: 0-20, 0-500, and 0-10,000 SCCM
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Air-driven pump for confining pressure
Steady-State Technique
Gas type: Nitrogen

Fully Automated Fall-Off Gas Permeameter

Permeability range: 0.001 mD -10 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 200 psi
Pressure Accuracy: 0.1% FS
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Air-driven pump for confining pressure
Unsteady-state technique
Gas type: Nitrogen

Fully Automated Pulse-Decay Gas Permeameter

Permeability range: 10 nD - 10 mD
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Air-driven pump for confining pressure
Unsteady-state technique
Gas type: Nitrogen

Automated Combined Gas Permeameter

Permeability range: 10 nD - 20 D
Confining pressure: up to 10,000 psi
Core holder diameter: 1.0" or 1.5"
Core holder length: up to 4.0"
Pore pressure: up to 500 psi
Pressure accuracy: 0.1% FS
Flow accuracy: 1.0% or better
Flow range: 0-20, 0-500, and 0-10,000 SCCM
Electrical requirement: 110/220 VAC, 50/60 Hz
Power requirement: standby 100 W, running 350 W
Air-driven pump for confining pressure
Steady-state and unsteady-state technique
Gas type: Nitrogen
