THERMAL INSTRUMENT

What is a Thermal Instrument?

A thermal instrument is a core flooding device that is used to measure heat transfer through convection, primarily for geothermal applications. Heat transfer in the porous medium has various applications in the food industry, mechanical engineering, petroleum engineering, geothermal energy harvesting, etc.

request a quote

Models

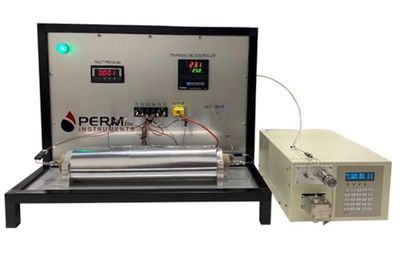

Thermal Instrument

  • Maximum inlet pressure: 5 psi
  • Maximum temperature: 100ºC
  • Fluid type: water
  • Accuracy of pressure measurements 0.1%FS
  • Flow range: 0.01-80 ml/min
  • Electrical requirement 110 VAC
  • Power requirement: standby 100 W, running 350 W
